Sinotruk Howo 8x4 Truck Chassis
  • Specification

Sinotruk HOWO 8X4 Dump Truck Chassis

Chassis Model

ZZ3317V3867B1

Driving Type

LHD (RHD is optional)

Cabin

HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.

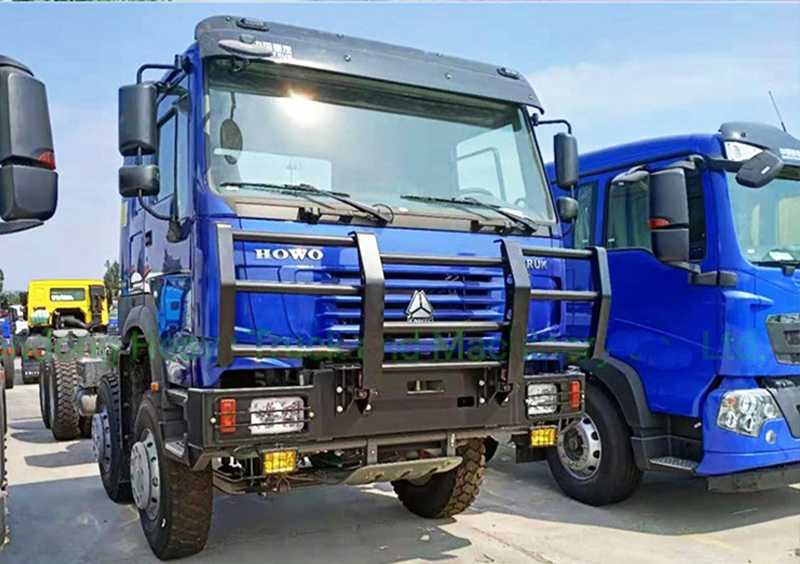

With Military Steel Bumper

Engine

Make: WICHAI
Diesel 4-stroke direct injection diesel engine
Engine model: WP12.400E201, Euro II, 400 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 11.596 L

Transmission

HW19710, 10F & 2R
Ratio: 14.28,  10.62,  7.87,  5.88,  4.38,  3.27,  2.43,  1.80,  1.34, 1.00,  13.91(R1),  3.18(R2)

Steering

ZF power steering, model ZF8118, hydraulic steering with power assistance

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

VGD95, 1x9000 KGS
Steering with double T-cross section beam

Rear Axle

MCP16ZG, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Ratio: 5.26

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members
Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

12.00R20, Radial (steel wire) Tires. 12+1 Pics

Fuel Tank

400L

Overall Dimension

10300*2550*3500 mm
