Howo Water Tanker 20000L
  • Specification

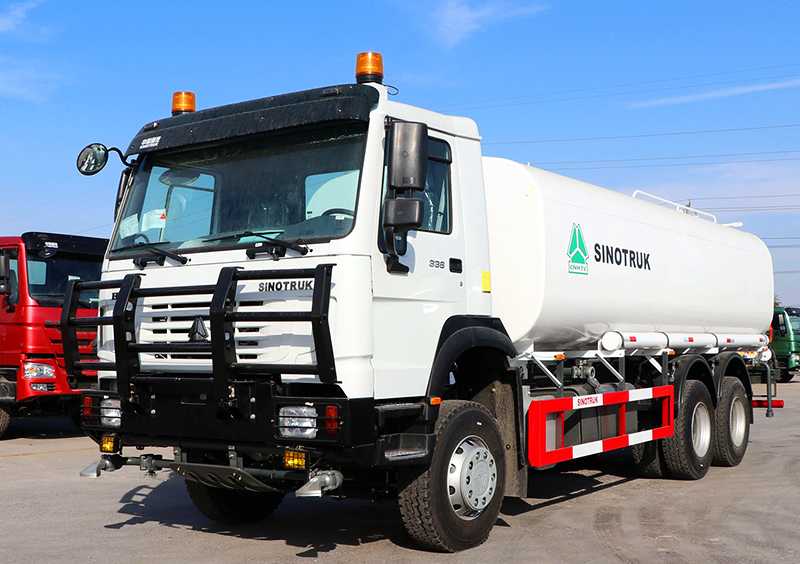

SINOTRUK HOWO 6X4 Water Tanker Truck – 20,000L

Chassis Model

ZZ1257N4347D1B

Driving Type

LHD (RHD is optional)

Cabin

HW76 cab, with one sleeper, two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber.

Engine

Make: WICHAI

Diesel 4-stroke direct injection diesel engine

Engine model: WP12.400E201, Euro II, 400 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 11.596 L

Transmission

HW19710, 10F & 2R

Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering

ZF power steering, model ZF8118, hydraulic steering with power assistance

Front Axle

VGD95, 1x9000 KGS

Steering with double T-cross section beam

Rear Axle

HC16, 2x16000 KGS

Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.

Ratio:4.42

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members

Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

12.00R20, Radial tires with one spare tire

Fuel Tank

400L

Tank Body

Capacity: 20 Cubic Meters, 20,000 Liters

Front and Rear sprinkling system

High Press Water Jet. Turning Lights

Overall Dimension

9800*2500*3350mm
