Chassis Truck specs

Model

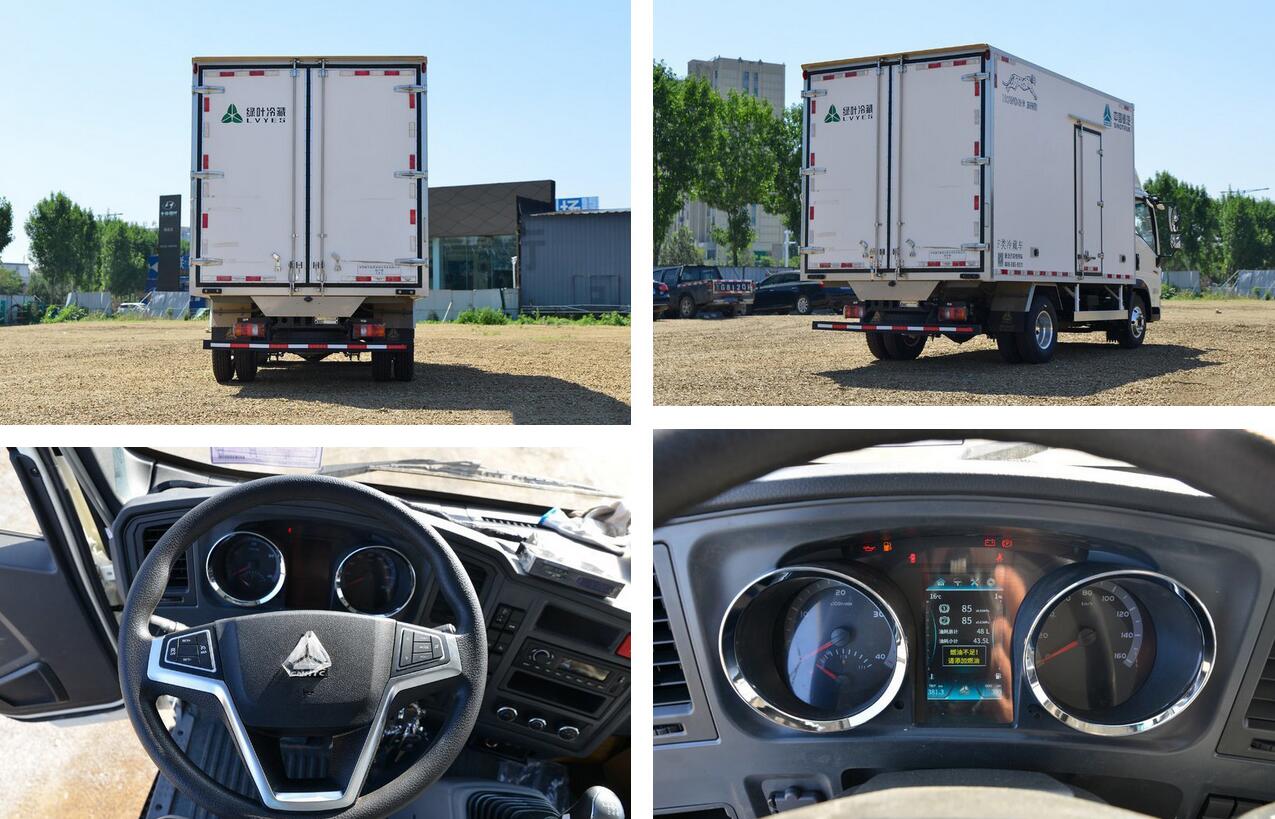

5 Ton REFRIGERATOR TRUCK

Traction type

4X2

Driving type

Left hand driving

Driver's cab

1880 one and a half row cabin ,without sleeper & A/C

Dimensions (mm)

Wheel base(mm): 3500

Overall size(mm): 6600×2320×3300

Wheel tread(front/rear)(mm): 1605/1520

Engine

Maker: CHAOCHAI

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling

Engine model: 4102

Emission Standard: EURO2

Horsepower : 120 HP

Maximum output: 88kw /2800 rpm

Number of cylinder:4

Displacement: 3856ml

Transmission

WLY6T50C / 6 forward &1 reverse

Front Axle

2.4 ton

Rear Axle

4.2 ton

Suspension

11/9+7

Tyres

7.50R16

Body

Insulating layer

Polyurethane material, 80mm

Freezer

Temperature system : Thermo King Freezer

Refrigerator motor controlled adjustable

Cargo box size

4600×2050×2050 mm

Minimum temperature

-10℃

Electrics

Operating voltage: 24V, negative grounded
